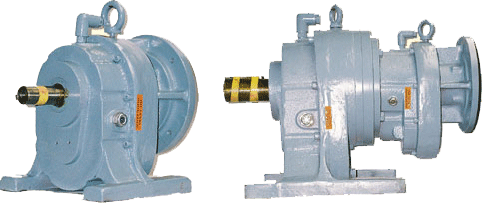

Helical Incline Gear Motor



We are manufacturing Helical geared motors ranging from size 0.18 KW (0.25 HP) to 75 KW (100 HP) capacity & having RPM from 0.1 to 700 RPM. Our geared motors are confirming to AGMA standard & having adepta adaptor system i.e making it total 8 bearing design and they are very heavy duty design .Geared motors can be supplied both in foot mounted & flange mounted design suitable for stirrer & agitator duty application.

Gears are made from 20 MNCR material hardened & ground/laped for noiseless performance.Hardening & laping of tooth profiles achieve high contact efficiency by way of transmission of torque, as well as ensuring smooth and silent running, free of vibrations,under arduous and high load conditions.

Our Helical geared motors are being produced in modern and well equipped factory adopting latest techniques in designing and developing the motors, rigid quality control at almost all stages of production and latest testing fascilities as per various National & International standards have helped in raising the image of our geared Motors as a quality product making them acceptable to the various prestigious applications throughout the country. & Worldwide.

Plastic, Rubber, Textile, Machine Tools, Paper, Printing, Wire drawing, Cables Pharmaceutical Leather, Rolling Mill, Synthetic Yarn etc.

Our Geared Motors are manufactured with output ranging size 0.18 KW (0.25 HP) to 75 KW (100 HP) capacity & having RPM from 0.1 to 700 RPM. Units available in standard as well as 'Custom Built' in Horizontal foot & flange mounted type construction. Low RPM geared motors are also offered on request.
All parts / components are thoroughly inspected during & after manufacturing process. Quality grade materials procurement sturdiness, rigid enclosed & oil tight construction of housing to withstand with the application in the working & for easy maintenance.
Our Helical Geared Motors are suitable for various application to meet requirement of different industries.

We supply geared motors as per customer's specific requirements such as Dual Speed, Electromagnetic Brake Geared Motor, Flame Proof, High Torque Characteristics, Frequent Start/Stop operations, Agitator duty Units.

The table shows the maximum uniform power and torque that may be transmitted continuously for 8 to 10 hours per day. It is based on wear & strength of the gearing & the working life & antifriction bearings. The ratings are based on a service factor of 1.00. This factor does however only effect the gear size but not motor-size & rated capacity combining different gear boxes with the motor size provides a higher safety factors.
